Model coverage
This Ford F-150 model page covers 18 indexed years from 2009-2026 with exact-year service pages for module, security, and calibration data.
Choose a year
F-150 Module Programming & Calibration
Start with your model year Choose the exact F-150 year or start a quote by VIN.
As one of the most technologically advanced vehicles in its class, the Ford F-150 utilizes the Co-Pilot360™ suite. Restoring these complex safety networks after a collision demands OEM-level diagnostics and precise target alignment. Aluminum body since 2015. 2021+ P702 platform uses SYNC 4 and BlueCruise. IPMA camera is very sensitive to windshield rake.
3,200+
Vehicles supported
1-Year
Unlimited warranty
DFW Mobile
Mobile in DFW
OEM-Grade
Native diagnostics
MODEL SERVICE SNAPSHOT
What Core Auto Logic can do for the Ford F-150
ADAS evolution
Across indexed Ford F-150 years, documented sensor systems include Forward Camera (Monocular), Forward Radar (77GHz), BLIS (Blind Spot Information System), Lane Keeping Aid (LKA), and Rear Cross Traffic Alert (RCTA); 145 calibration trigger records are indexed across the model line.
View generationsProgrammable modules
The indexed Ford F-150 years include 459 programmable module records across exact-year pages.
View yearsGateway and security
This model line includes 60 gateway, immobilizer, or key-security records across indexed years.
View yearsCore Auto Logic capability
Core Auto Logic supports model-line diagnostics, exact-year module programming, security-access planning, and ADAS calibration where equipped for the Ford F-150.
View yearsAvailable years
Years we service for F-150
18 model years with documented module and calibration coverage.
F-150 2026
Module and calibration coverage
F-150 2025
Module and calibration coverage
F-150 2024
Module and calibration coverage
F-150 2023
Module and calibration coverage
F-150 2022
Module and calibration coverage
F-150 2021
Module and calibration coverage
F-150 2020
Module and calibration coverage
F-150 2019
Module and calibration coverage
F-150 2018
Module and calibration coverage
F-150 2017
Module and calibration coverage
F-150 2016
Module and calibration coverage
F-150 2015
Module and calibration coverage
F-150 2014
Module and calibration coverage
F-150 2013
Module and calibration coverage
F-150 2012
Module and calibration coverage
F-150 2011
Module and calibration coverage
F-150 2010
Module and calibration coverage
F-150 2009
Module and calibration coverage
ADAS EVOLUTION
How Ford F-150 ADAS has changed
4 platform generations from 2009 to 2026.
1

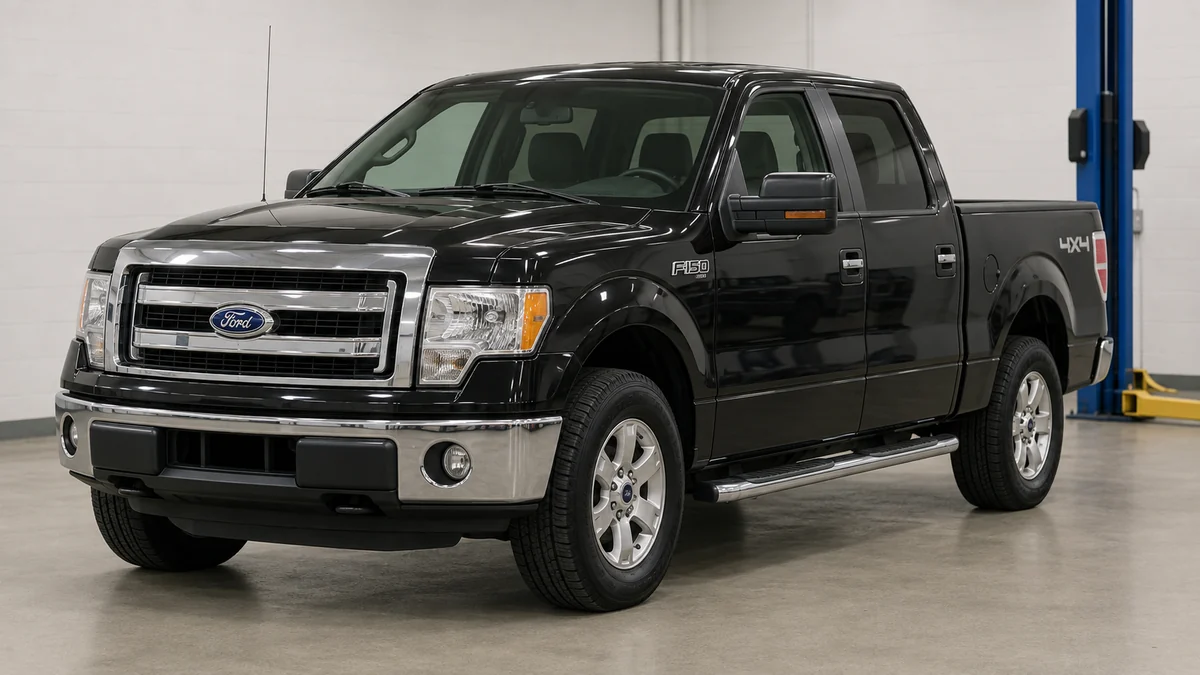

P553 (12th Gen, 2009-2014)
2009 - 2014 HS-CAN (500 kbps) - ISO 15765-4 compliant; OBD2 DLC Pin 6/14
ADAS SYSTEMS (3)
Rear View Camera Blind Spot Monitoring Forward Collision Warning / AEB
Complete mobile calibration and module programming available. Specific protocols vary by trim and replaced hardware. [EPA] 4.6L | V8 | Regular | Rear-Wheel Drive | Automatic 6-spd | 17 MPG comb.
2

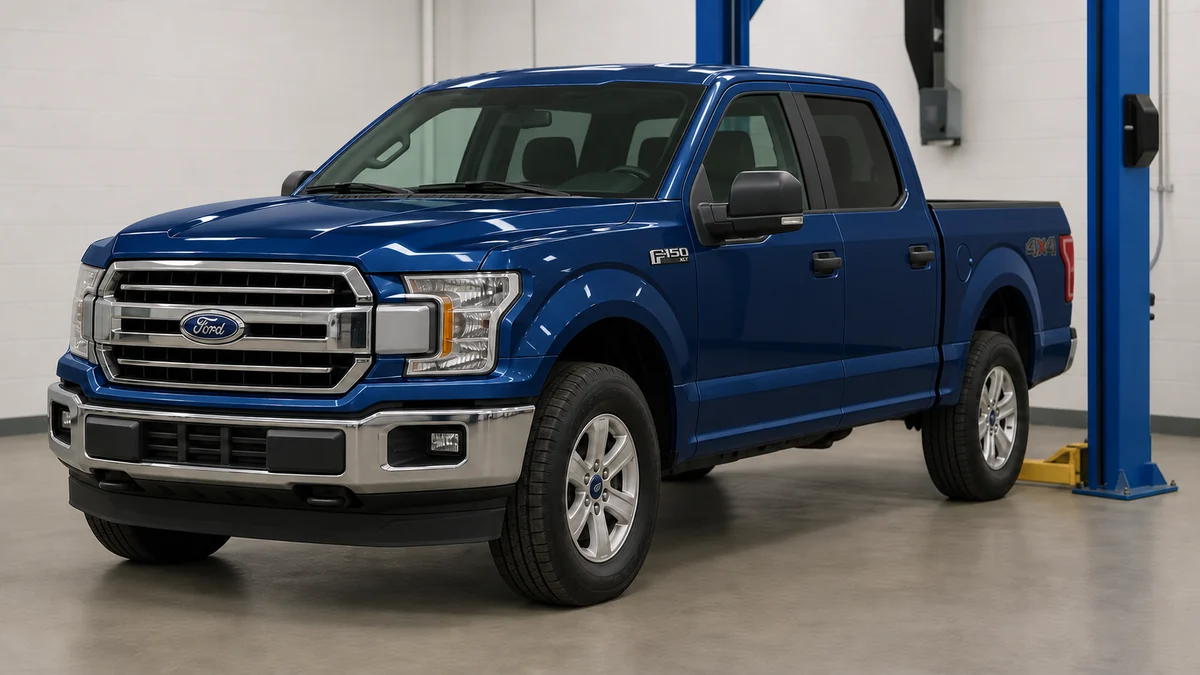

P552
2015 - 2020 HS-CAN1 (Powertrain 500kbps), HS-CAN2 (Chassis/ADAS 500kbps), MS-CAN (Body 125kb...
ADAS SYSTEMS (16)
Forward Camera (Monocular) Forward Radar (77GHz) BLIS (Blind Spot Information System) Cross Traffic Alert (CTA) Lane Keep Assist / Lane Departure Warning (LKA/LDW) Rear View Camera Park Distance Control (PDC) Blind Spot Monitor Sensor - Left (BSM) Blind Spot Monitor Sensor - Right (BSM) Rear Automatic Braking Sensor Evasive Steering Assist (Co-Pilot360 Assist) Rear Automatic Braking Active Park Assist (optional) Active Park Assist 2.0 Reverse Brake Assist (Co-Pilot360 Assist+) Adaptive Headlamp Module (if equipped)
P552 platform (13th Gen, first year). All-aluminum body (AA6111/AA6022 alloy), high-strength steel frame. | FDRS required for all module programming - IDS legacy acceptable for diagnostics only. | ADA...
3
P702
2021 - 2026 HS-CAN, MS-CAN, HS-CAN3, Private CAN (IPMA-SODL/SODR), Ethernet (IPMA-GWM on equ...
ADAS SYSTEMS (17)
Lane Keep Assist / Lane Departure Warning (LKA/LDW) Blind Spot Information System (BLIS) Cross Traffic Alert (CTA) Adaptive Cruise Control / Pre-Collision Assist (Forward Radar) 360-Degree Camera System Rear View Camera Active Park Assist Automatic Emergency Braking (AEB) BlueCruise (Hands-Free Highway) Adaptive Cruise Control / Pre-Collision Assist BlueCruise 1.5 (Hands-Free Highway) Active Park Assist 2.0 Forward Camera (Monocular) Forward Radar (77GHz) BLIS (Blind Spot Information System) Lane Keeping Aid (LKA) Rear Cross Traffic Alert (RCTA)
P702 platform (14th Gen, 2021+). Complete mobile calibration and module programming available. FDRS required for all PMI. | TCU/TCM: 10R80 MX6P-14C336. Clone and virgin supported. | PowerBoost hybrid ...
4
Ford ME1E (Modular Electric platform, derived from T6 truck frame)
2022 - 2026 HS-CAN (500 kbps) + CANFD; OBD2 DLC Pin 6/14; Ford FNV3 network architecture
ADAS SYSTEMS (6)
Forward Camera / Lane Keep Assist (IPMA) Forward Radar - ACC / Pre-Collision Assist Blind Spot Monitor / BSD (Aptiv radar) Rear View Camera (CMR) Park Distance Control / PDC (Valeo ultrasonic) BlueCruise 1.2 (Hands-Free Highway L2)
2022 Ford F-150 Lightning - ME1E platform (modular electric, T6-derived truck frame). Dual/single motor BEV, 98 kWh usable (Extended Range). Integrated Ford Charge Station Pro onboard. FDRS required f...
FREQUENTLY ASKED QUESTIONS
FAQ
Which ADAS systems does the Ford F-150 have, and which require calibration after collision repair?
Co‑Pilot360™: forward monocular camera, 77GHz radar, BLIS/BSM, CTA, LKA/LDW, rear camera, PDC, adaptive headlamps, Active/Reverse Park, 2021+ BlueCruise. Calibrate camera, radar, BSM/BLIS, rear camera, PDC and adaptive lamps. IPMA/CCM swaps require PMI via FDRS; IPMA is windshield‑rake sensitive.
Can you reset the airbag/SRS light on a Ford F-150?
Yes. We clear SRS faults after repairs and verified sensor deployment. Use OE‑grade tools and our diagnostic software to read/clear codes, reset modules and confirm readiness. IPMA/CCM may need PMI via FDRS after replacement.
What's involved in programming a replacement ECU/PCM for the Ford F-150?
Programming involves VIN flash, immobilizer sync, module coding, network relearn and PMI where required. We use OE‑grade tools and our diagnostic software; 2021+ P702s use CAN‑FD/AutoSAR and may need FDRS PMI.
Do you support all-keys-lost (AKL) on the Ford F-150?
Yes. We perform AKL using an authorized locksmith workflow and our diagnostic software to program new keys, reset immobilizer and program PCM/BCM as needed. 2021+ SYNC4/BlueCruise models may need dealer‑level PMI steps.
What's needed after windshield replacement on a Ford F-150?
Windshield replacement typically requires IPMA camera recalibration (static or dynamic) for Co‑Pilot360™. IPMA is sensitive to windshield rake; if IPMA replaced it will need PMI via FDRS. We use OE‑grade tools for calibration.
Can you service a Ford F-150 on-site, mail-in, or both?
Both. We offer on‑site ADAS calibrations and SRS/ECU services when space and alignment targets are available, or mail‑in module programming. We support P221/P415/P552/P702 platforms and CAN‑FD/AutoSAR 2021+.
Generations
F-150 generation guides
Start at the generation guide that matches your build, then drill into the exact model-year page for module, security, and calibration specifics.
Service pathways
Plan Ford F-150 service by exact year
Start with the model-year page before quoting module, security, or calibration work. Each year page carries the indexed systems and notes for that build.
Priority model-year pages
Common service pages
ADAS calibration for Ford F-150 Camera, radar, blind-spot, and post-repair calibration support. ECU programming and cloning for Ford F-150 VIN write, donor ECU setup, bench cloning, and immobilizer pairing. SRS and airbag module reset for Ford F-150 Crash-data clear, replacement RCM setup, and post-repair scan support. Immobilizer and key programming for Ford F-150 Add-a-key, all-keys-lost, and post-module-swap security pairing.
F-150 by the numbers
Coverage depth for this model line
Model-level coverage rolls up the year records indexed for Ford F-150.
18
Years catalogued
2009-2026
Year span
28
ADAS systems indexed
6
Generations
0
Part numbers indexed
Generation timeline
F-150 chassis evolution
Grouped by chassis platform when indexed on the model-year records.
2021-2026 Platform P702
Indexed generation
14th Gen (P702)
2015-2020 Platform Thirteenth Generation
Indexed generation
Thirteenth Generation
2009-2014 Platform P415
Indexed generation
12th Gen P415
